2D Platformer Pathfinding GDScript 4.4.1

Description

This 2D Platformer Pathfinding project provides a rudimentary algorithm to create a pathfinding behavior to a Player character and and enemy character using the built-in A* Graph node in Godot. It is converted and improved from the tutorial series Godot 4.x Advanced 2D Platformer Path Finding written in C# by the YouTube channel TheSolarString into GDScript 4.4.1 using the new TileMapLayer node (instead of the deprecated TileMap node in previous versions). I highly recommend anyone interested in using this tool to watch his video series to understand the algorithm better.

Note:

1. Some methods that return Nullable types that were used in the original tutorial in C# were converted into returning an effectively invalid result such as Vector2i.MAX instead of null in order to preserves the static typing of the methods and take advantage of the editor's IntelliSense. If you adopt these scripts into your game, depending on the game, this may not work as expected.
2. Assets have been shared with original author's permission.

How to use

1. In Project -> Project Settings -> Input Map, set up 2 inputs named left_mouse_button and start_follow. In the demo project, left_mouse_button is set up as the left mouse button, and start_follow is set up with the space-bar, the right mouse button and the enter key.
2.  In the Godot editor, in the Main scene, change the parameters in the TileMapLayerPathfind node to change the pathfinding behaviors.

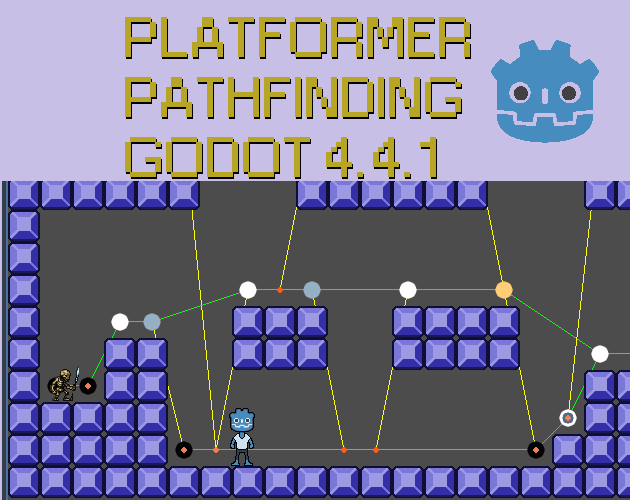

   1. ShowDebugGraph flag to show the debuging lines and graph points visually
   2. Jump Distance to define maximum horizontal jump distance in the graph
   3. Jump Height to define maximum vertical jump distance in the graph
   4. Fall Tile Horizontal Scan to define how far away horizontally should the graph scan for a fall tile below. When character collision shape is wider than the tile size, this should be round up to the smallest integer of the ratio between the character collision shape and the tile size to ensure proper falling. For example, if the character collision shape is 20px wide and the tile size is 16px, this value should be at least 2.
3.  Run the project.
4.  Left click to move the player character. Spacebar to let the enemy start following the player.
5.  You can switch to the included 16px tile map scene to try out different tile sizes.

Note: Codes are commented, particularly in the player and skeleton scripts for further adjustment in your projects.

Future improvement ideas

Despite the original name of this project being "Advanced Path Finding" (as in the original YouTube tutorials), I found there are things left to be desired with the pathfinding algorithm. I will provide some ideas for future improvements of this project should anyone (or myself) want to try and improve it.

1. Improve the A* graph / pathfinding algorithm

There are edge cases in the current implementation of the A* graph that causes the characters to move in unexpected and incorrect behaviors. The pathfinding works well enough with simple, blocky platform shapes, but in my testing I have found it could fail with more complex shapes.

2. Upgrade to work with moving platforms

Current implementation only works with static tiles. TheSolarString provided a suggestion on how one could upgrade the algorithm to work with moving platforms in a comment on the last part of his tutorial series on YouTube.

3. Hard-coded values

In the current implementation, there are hard coded values governing how the characters will behave with the platforms when it comes to jumping. Even though it is the TileMapLayer that dictates how the graph will be drawn, the movement is handled in the character scripts, using their own hard-coded values. This means if the values are not corresponding to the values provided in the TileMapLayer, the character won't be able to move properly. For example, if the Jump Height value in the TileMapLayer is set too high but the Jump Velocity values in the characters' scripts are set too low, they will stuck in a tile trying to jump up a platform indefinitely. In a more mature project, these values should be controlled in only one place, and easily changed.

4. Strong coupling between the TileMapLayer and the characters

In the current implementation, one one graph is drawn for all characters using the TileMapLayer. This means that the TileMapLayer assumes a lot of how every character will move through the tile map and what their movement capabilities are. This is not the case in a good platforming game, so an important improvement would be that each character will draw their own graph in the map and can dictate their own movement through it. This could be achieve in 2 ways:

 1. Draw multiple TileMapLayer nodes with different parameters for different characters with different capabilities and have them correspond accordingly.

 2. Refactor the code so that each character will have a component that draw its own graph from a TileMapLayer.

Contact

Follow me on itch.io for updates and future projects/tools or contact me on Discord as Lestavol.
